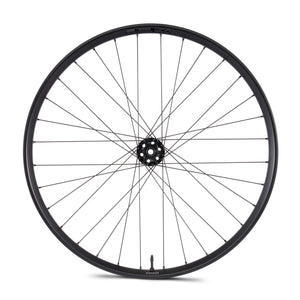

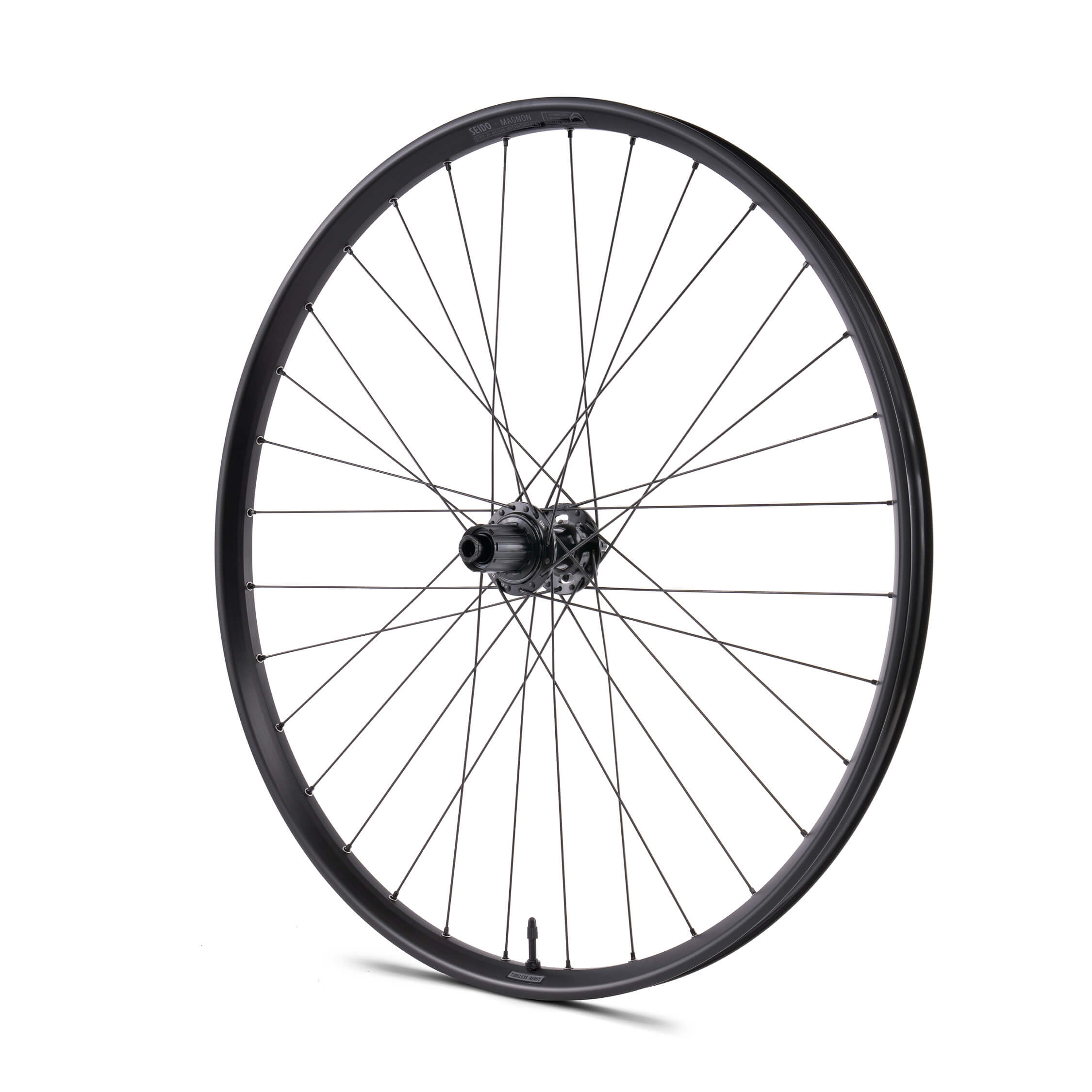

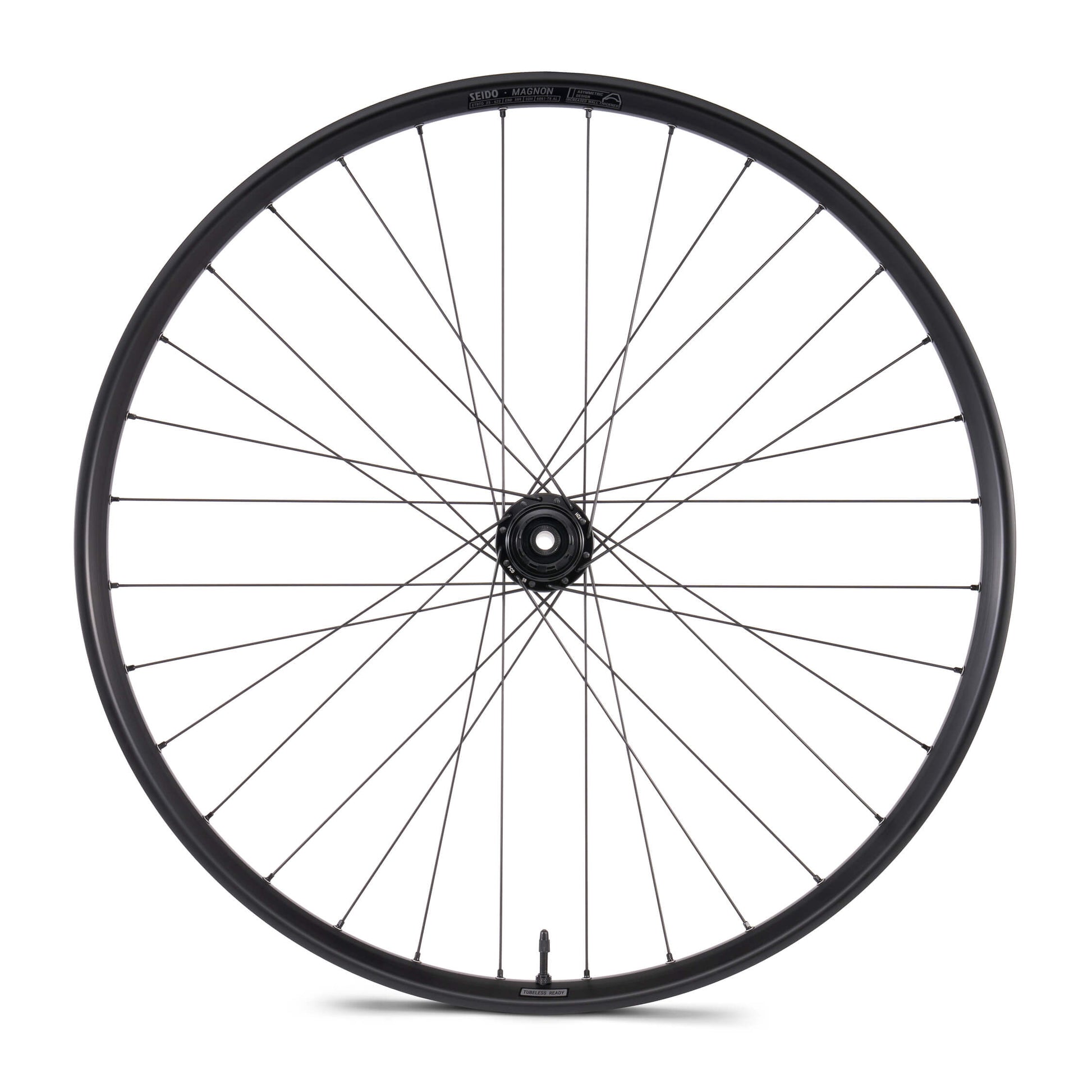

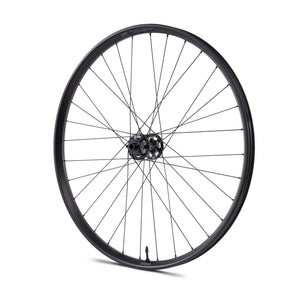

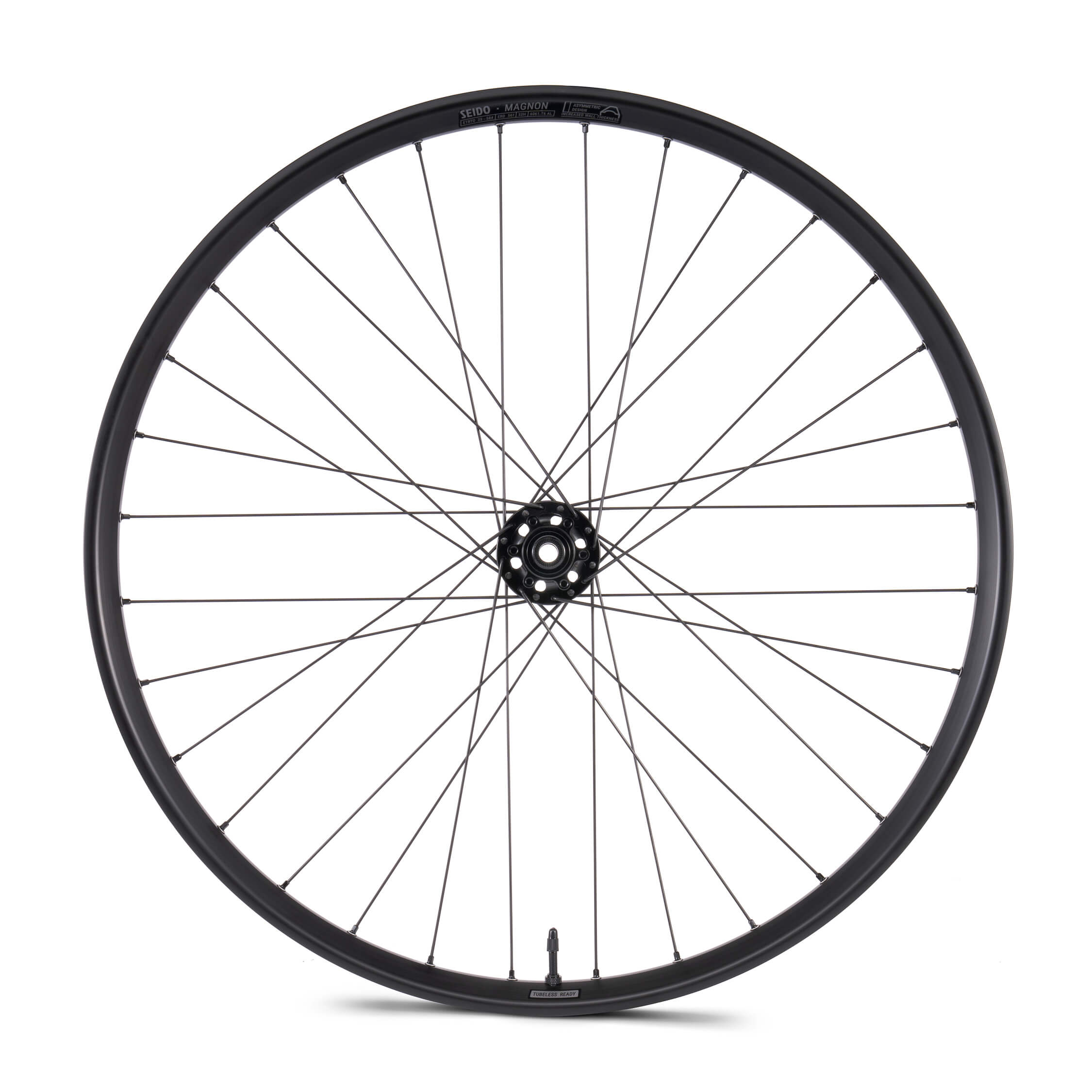

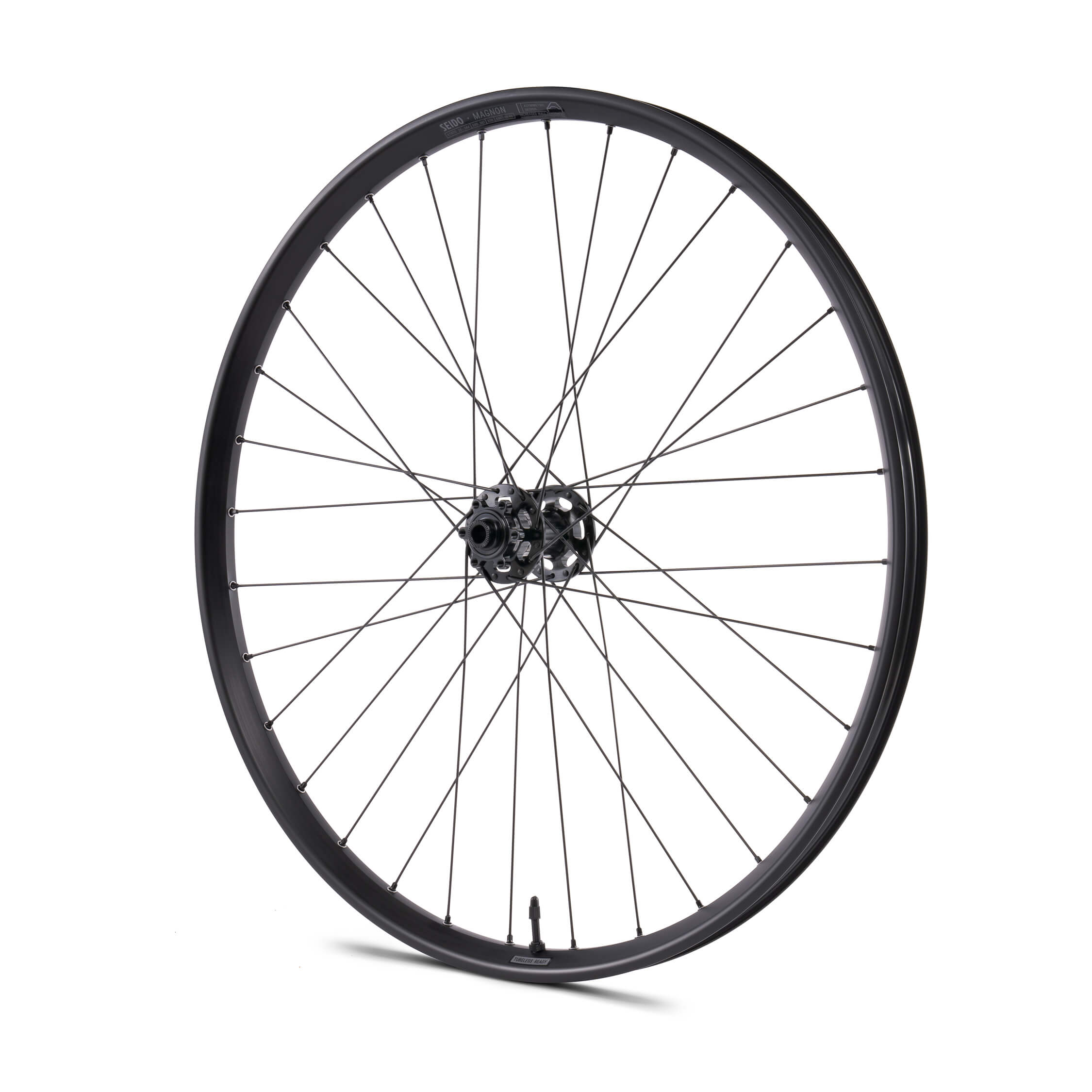

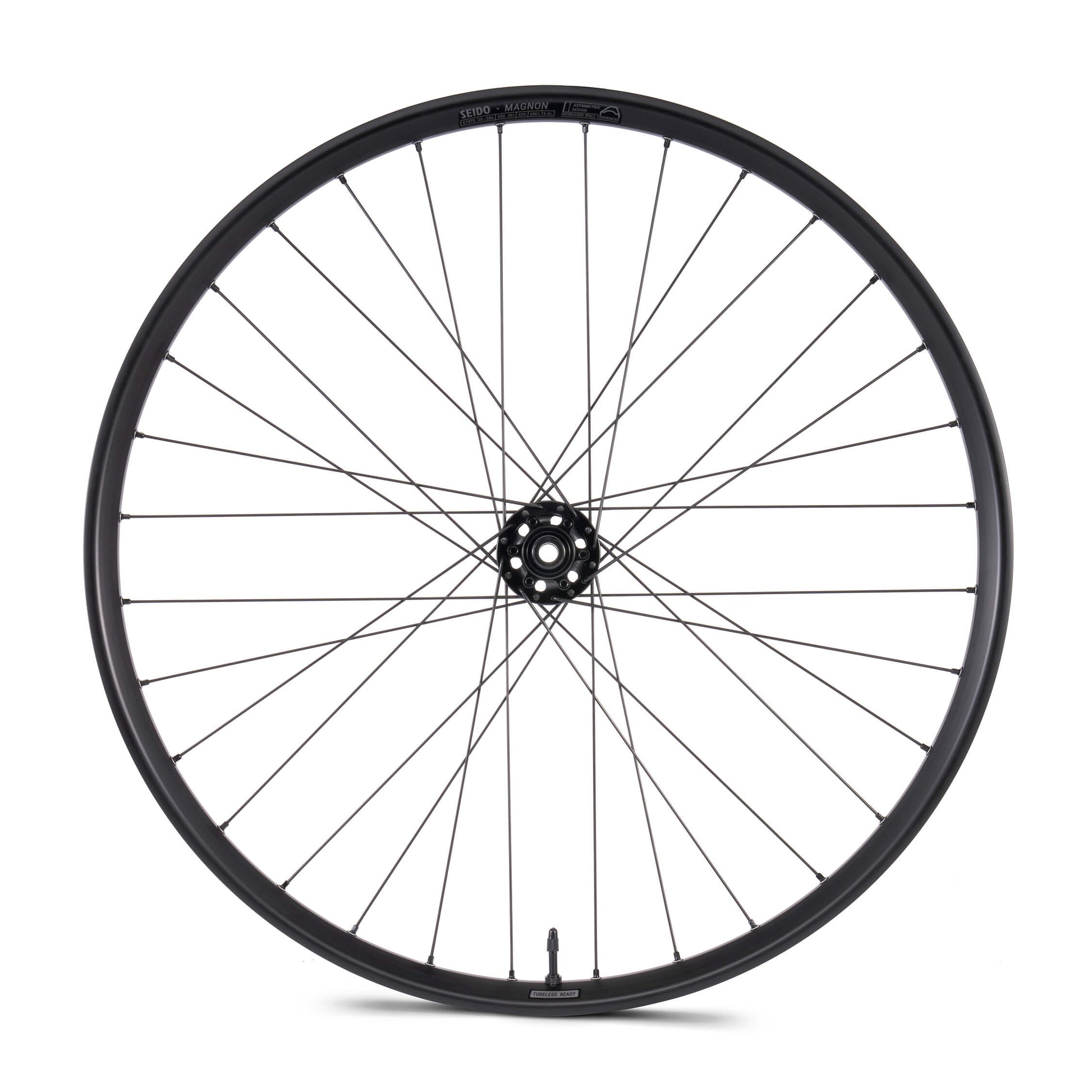

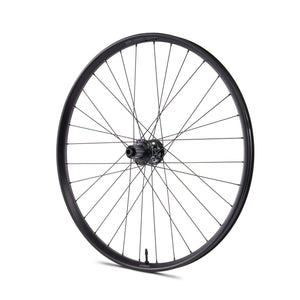

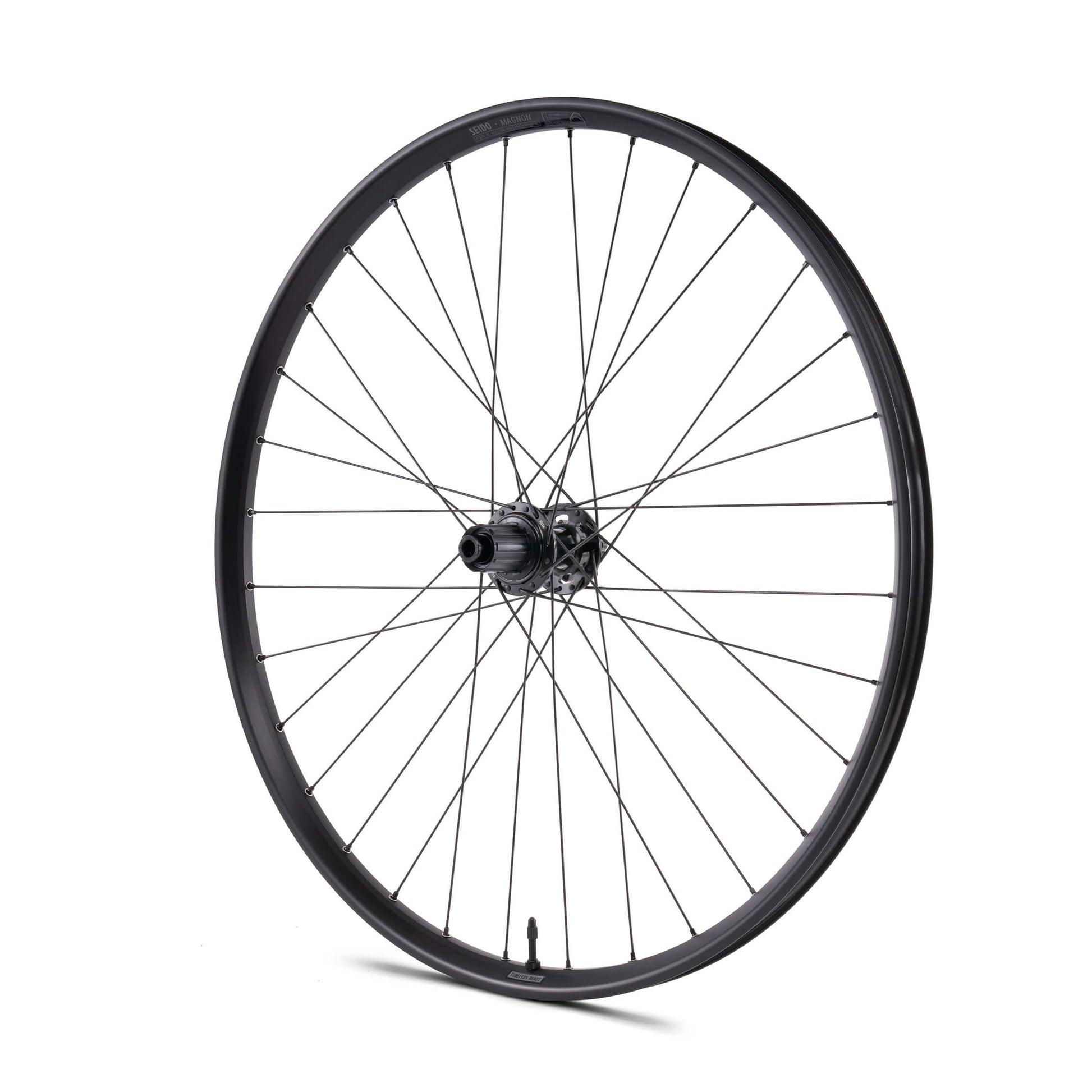

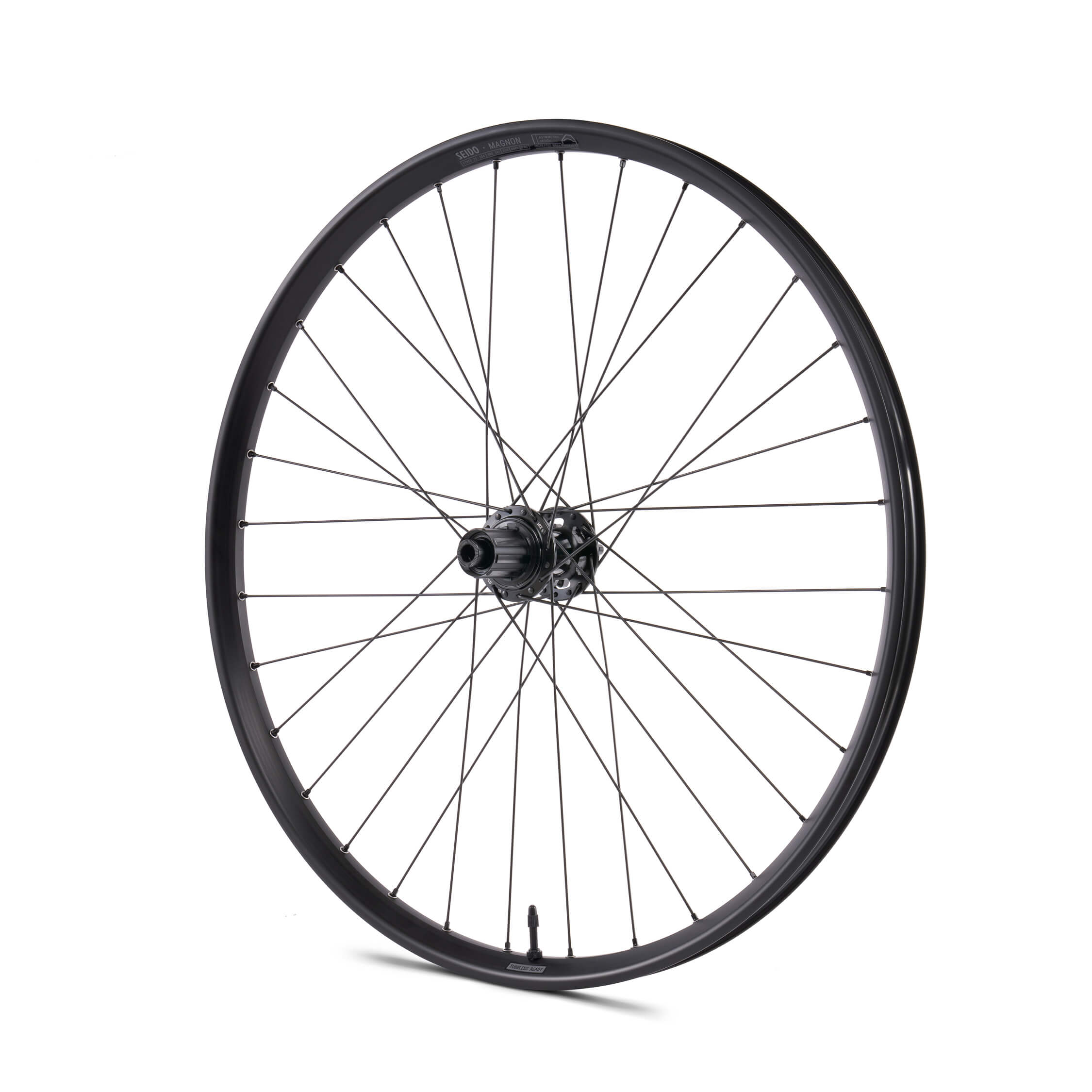

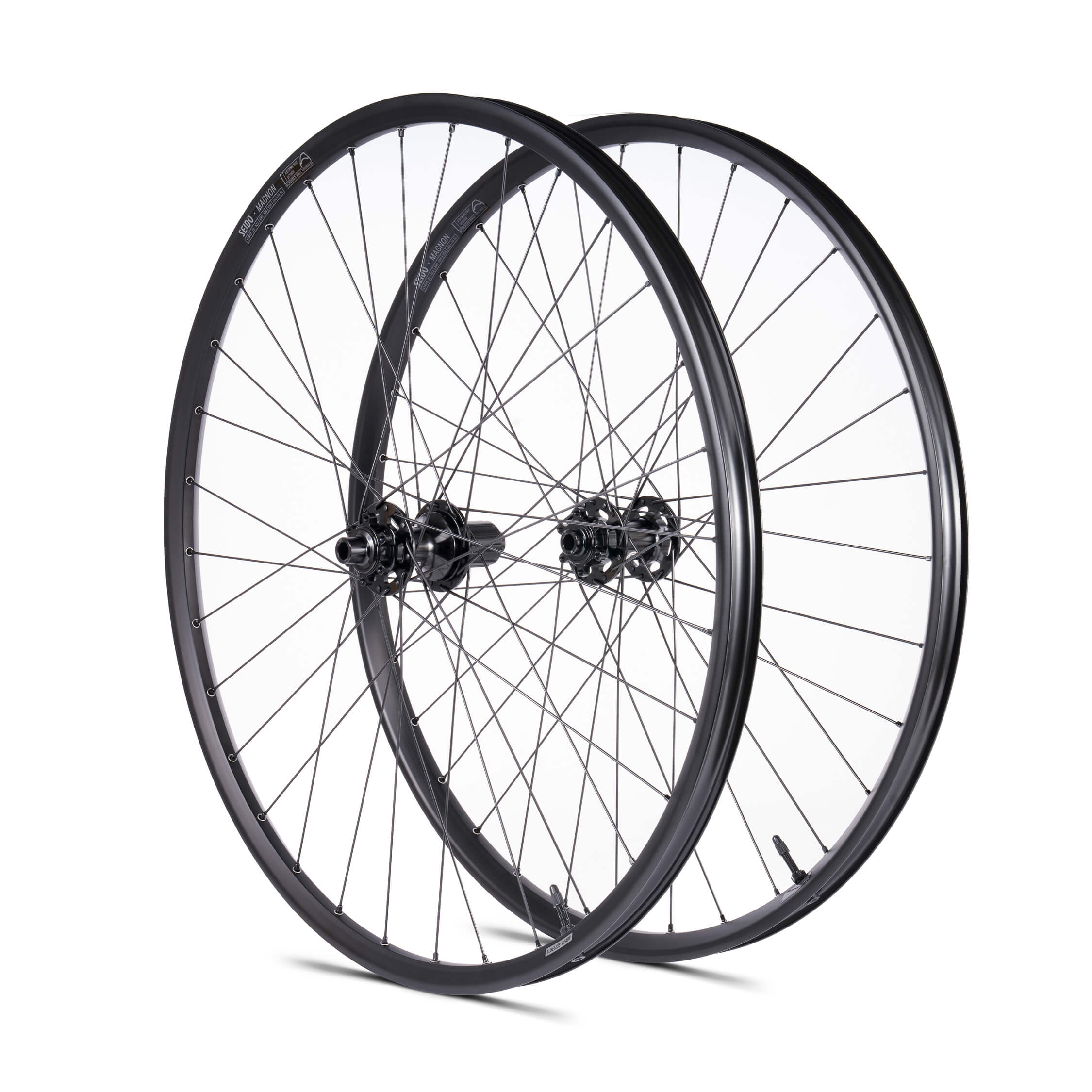

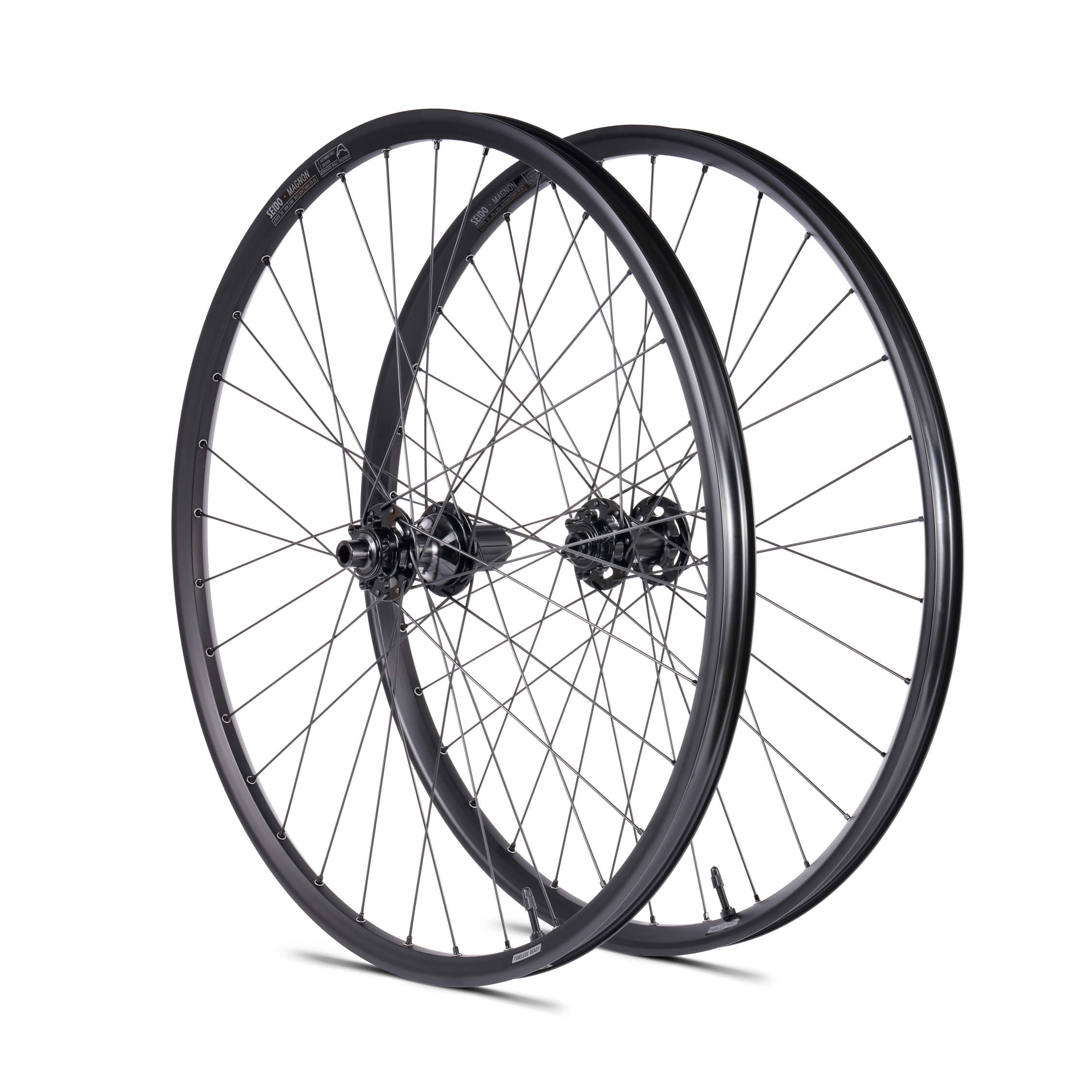

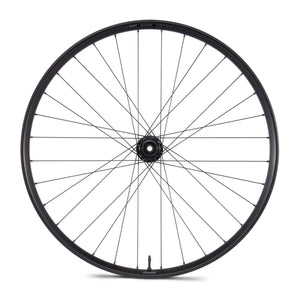

MAGNON Wheelset

MAGNON is our heavy duty touring wheelset. specifically designed to carry heavier loads across the roughest terrain over prolonged periods - a reliable choice for world-exploring touring bikes. MAGNON will confidently carry a maximum weight of 150kg. thanks to its beefy hub shells. triple butted spokes with a thicker 2.3mm elbow. and 25mm wide tubeless-ready rims inspired by downhill counterparts. This is a perfect wheelset upgrade for taller and heavier riders who seek a more suited and stiffer wheelset. All this added strength also means less road-side repairs caused by spoke breakage or rim failure.

ETRTO SIZE
25-584 / 25-622

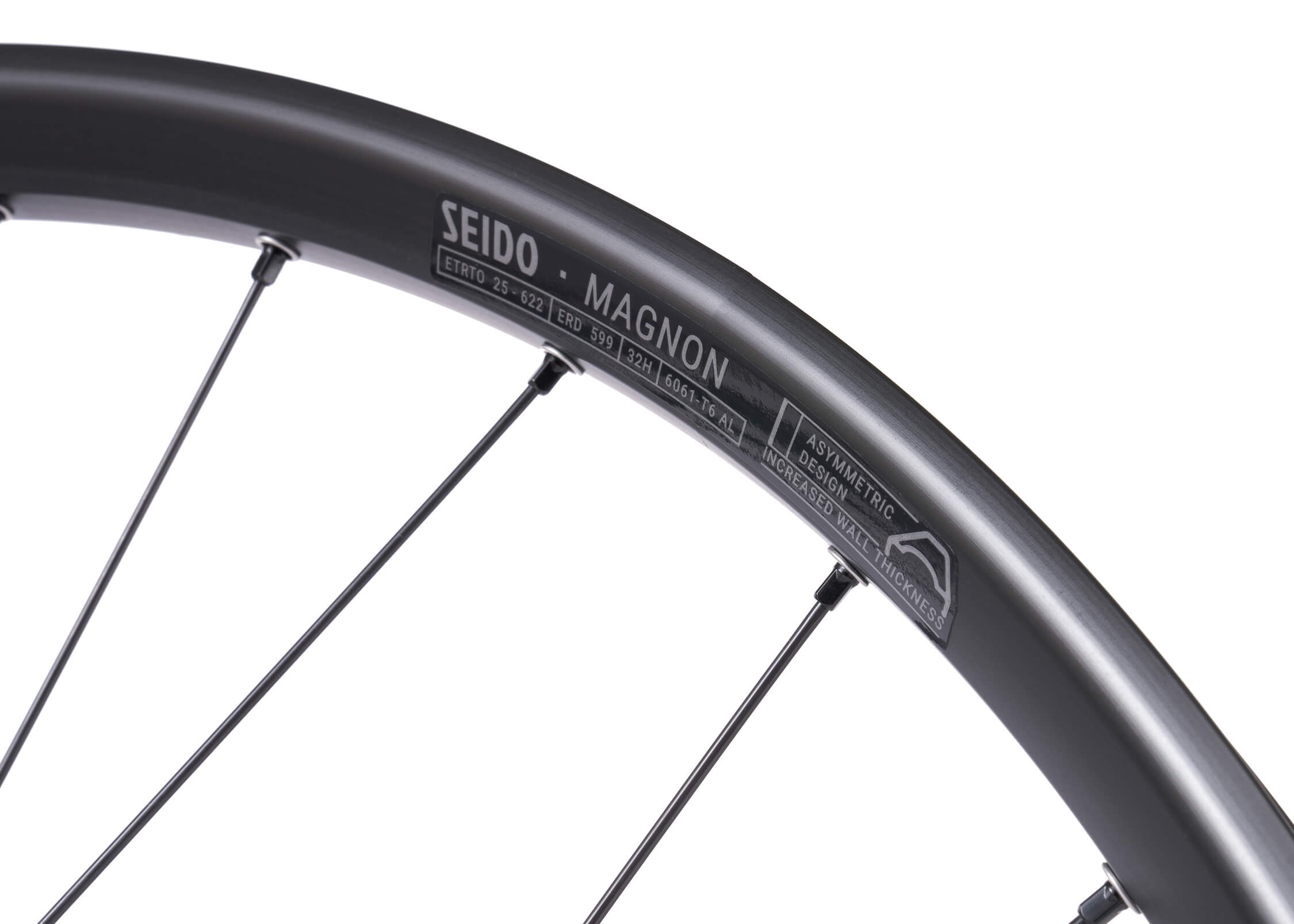

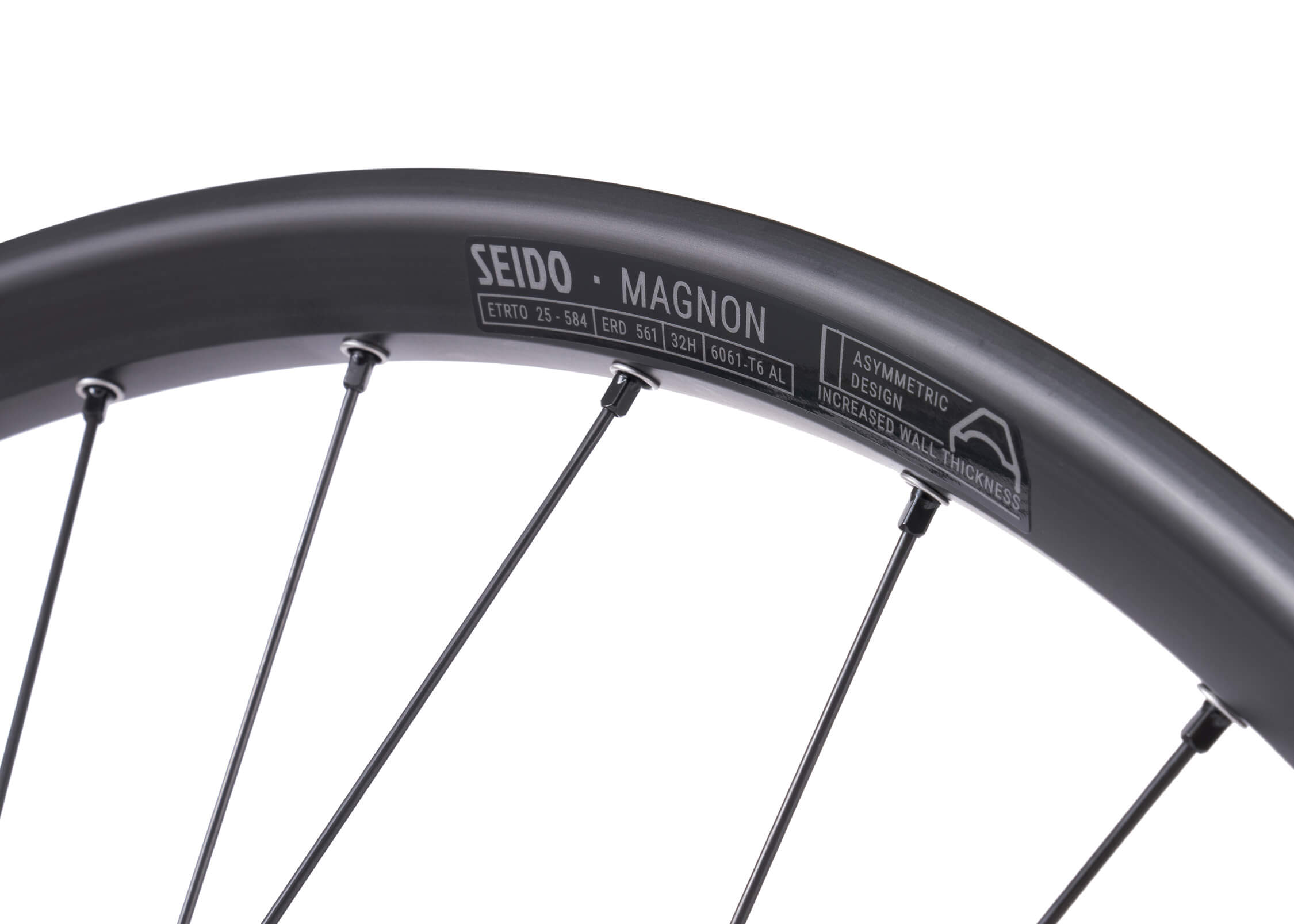

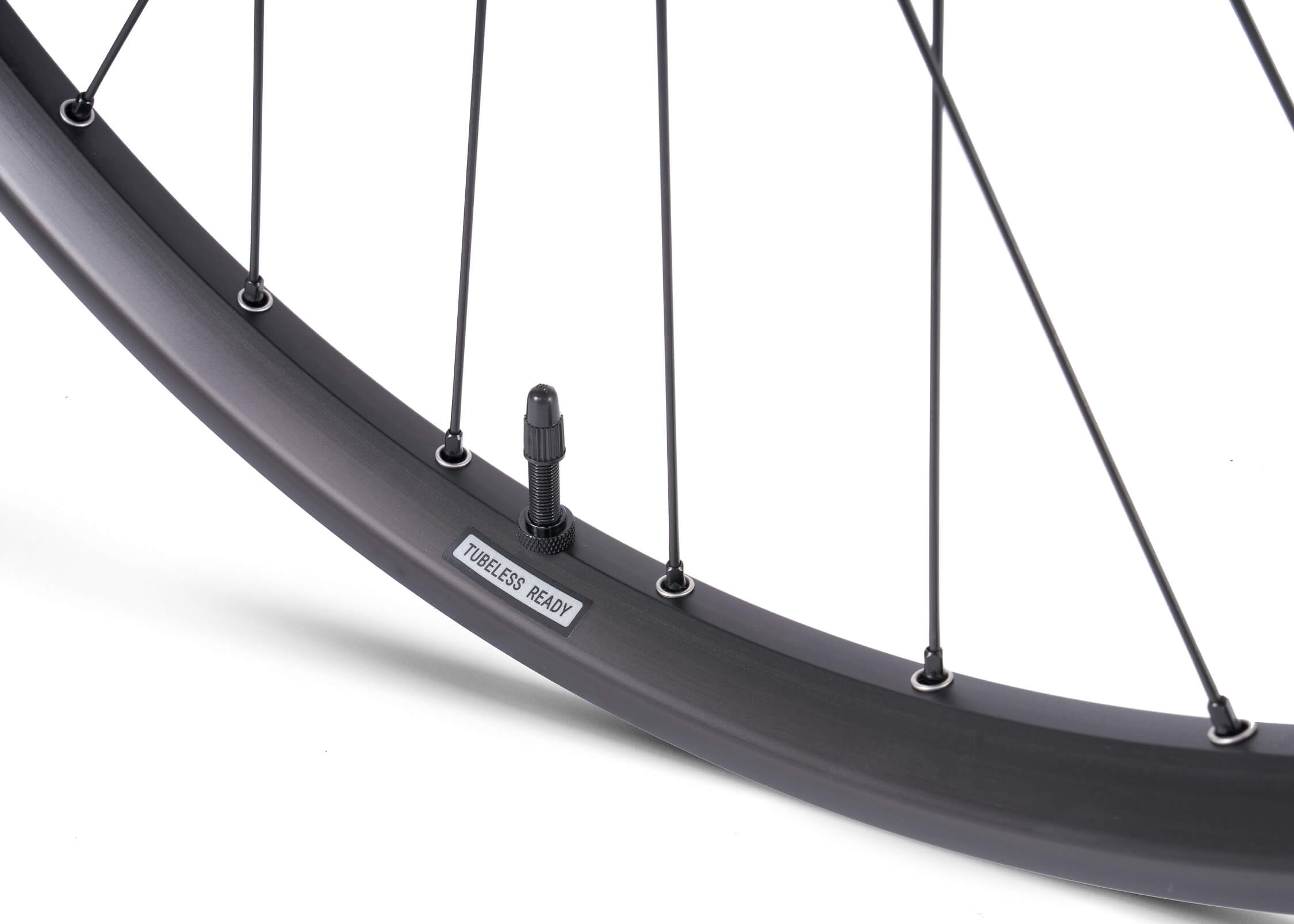

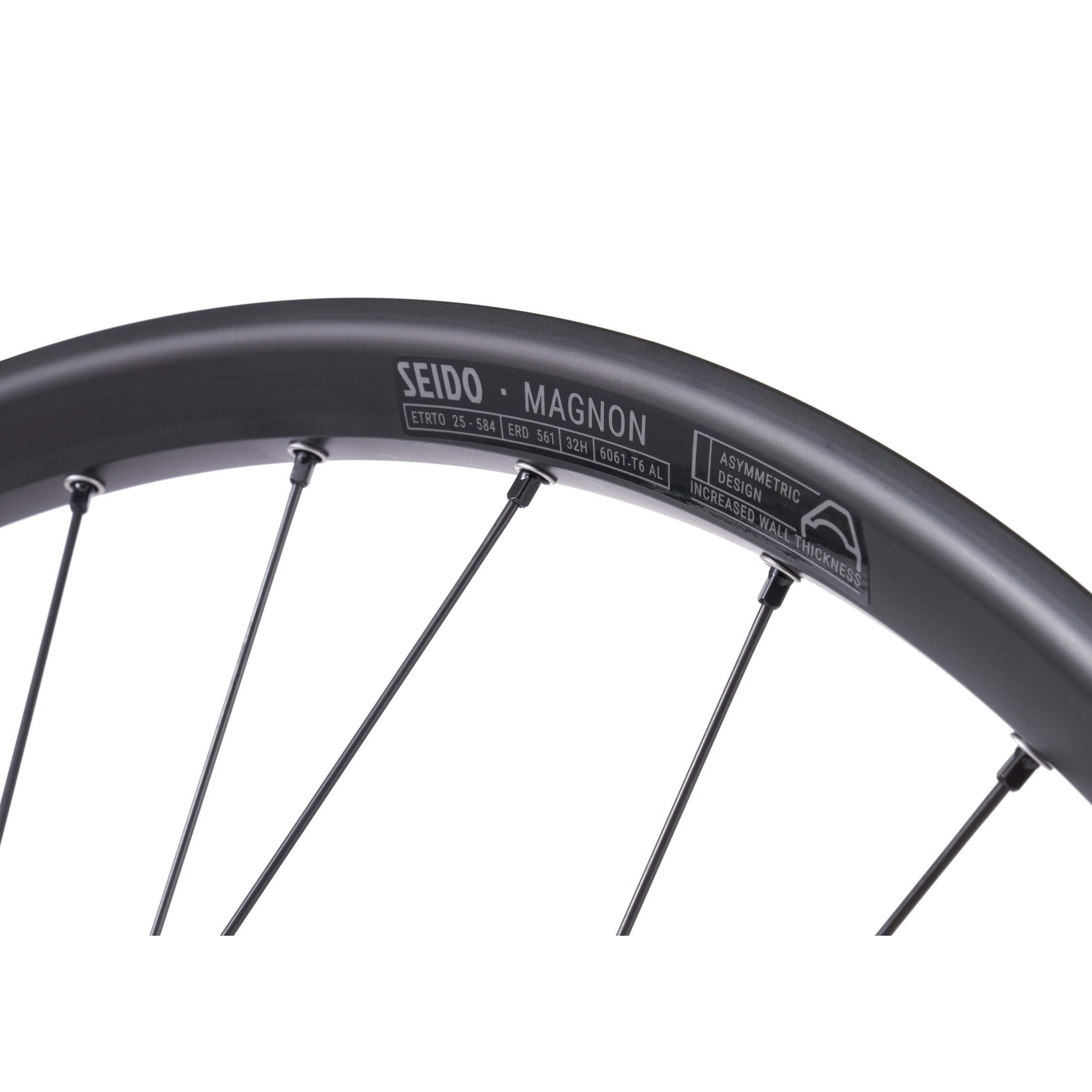

RIMS

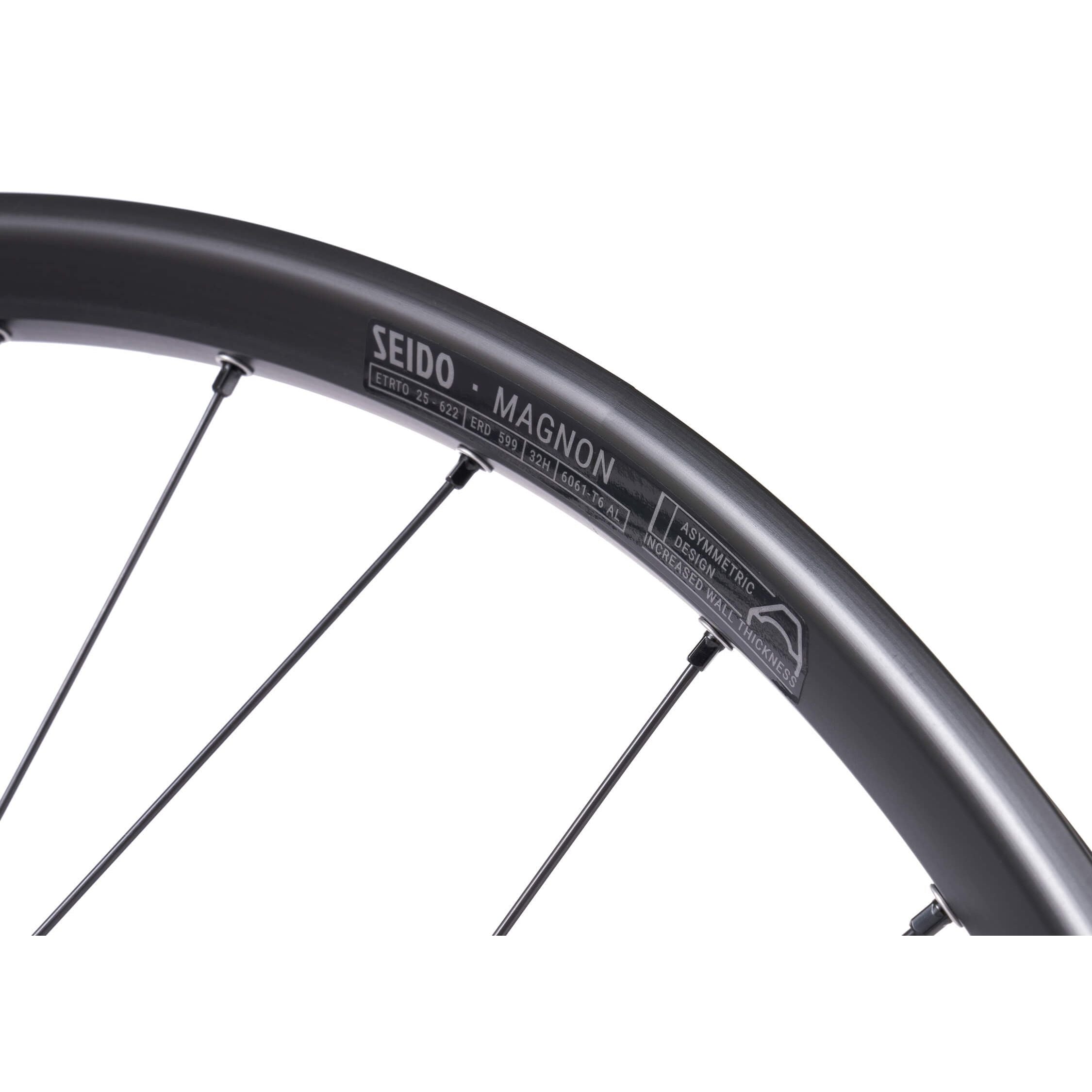

25mm int. width 6061-T6 alloy. asymmectric design. tubeless ready. single eyelets. increased wall thickness. sleeved joint

RIM HEIGHT
20 mm

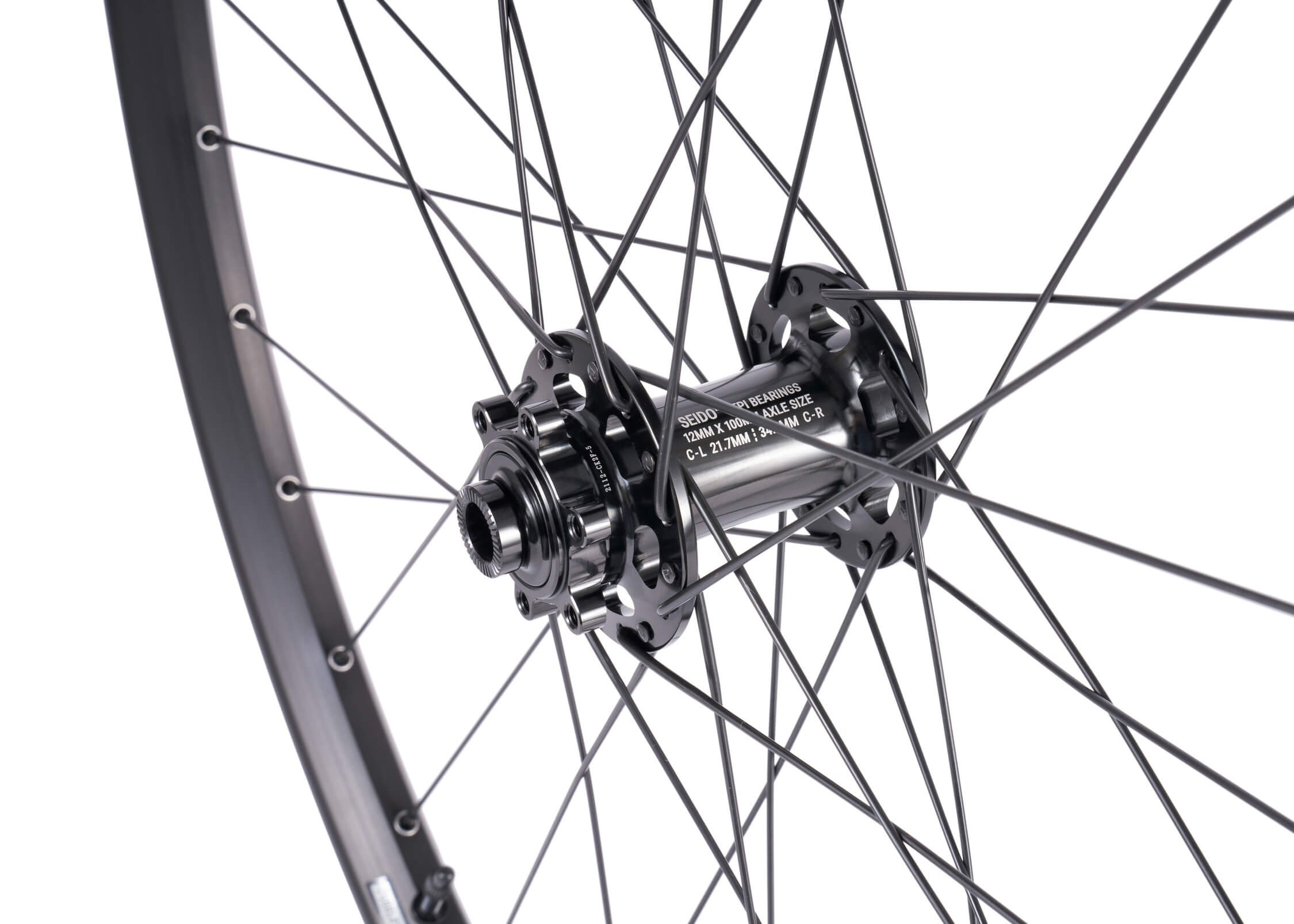

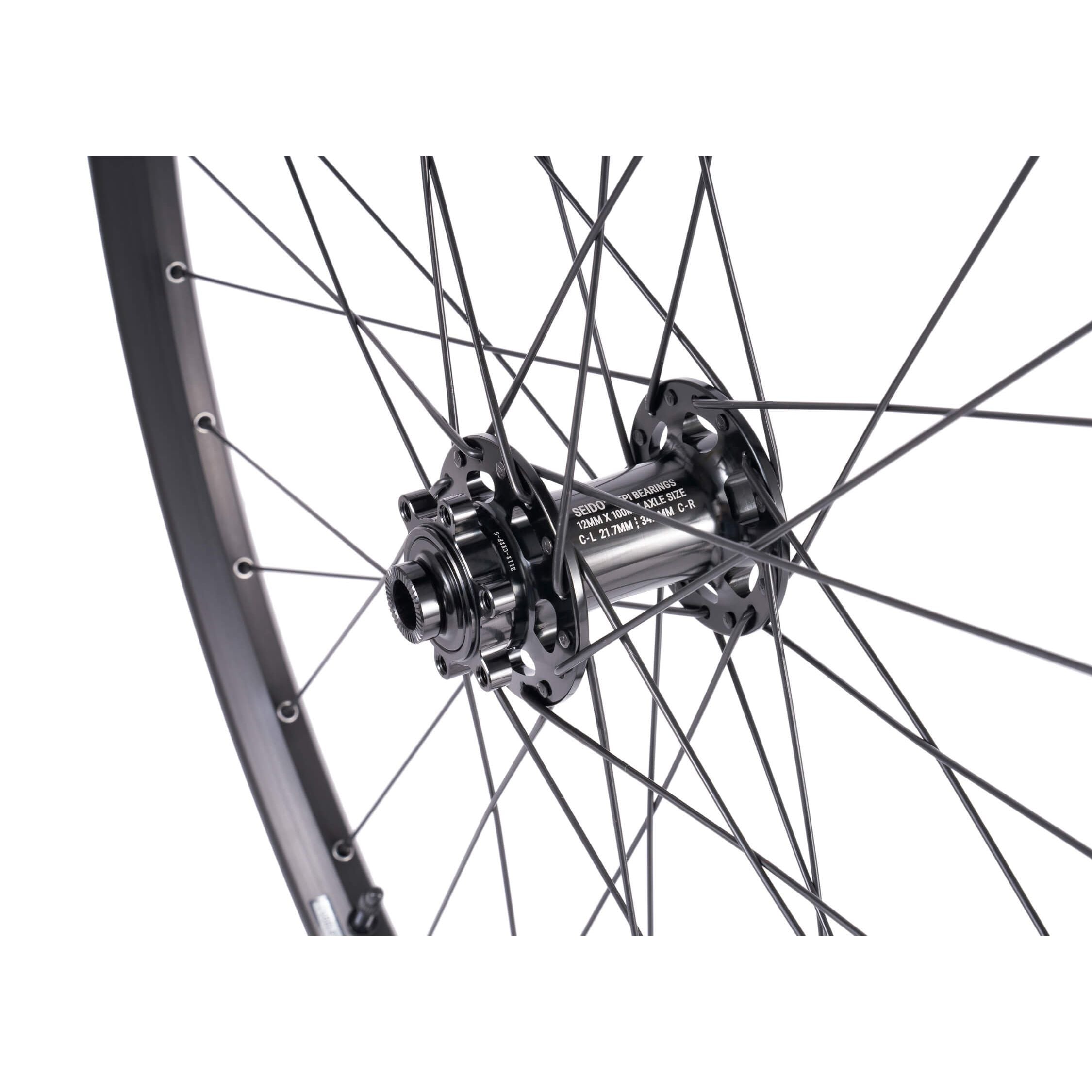

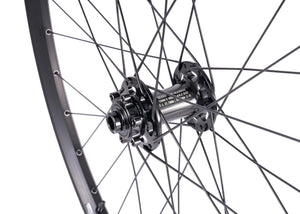

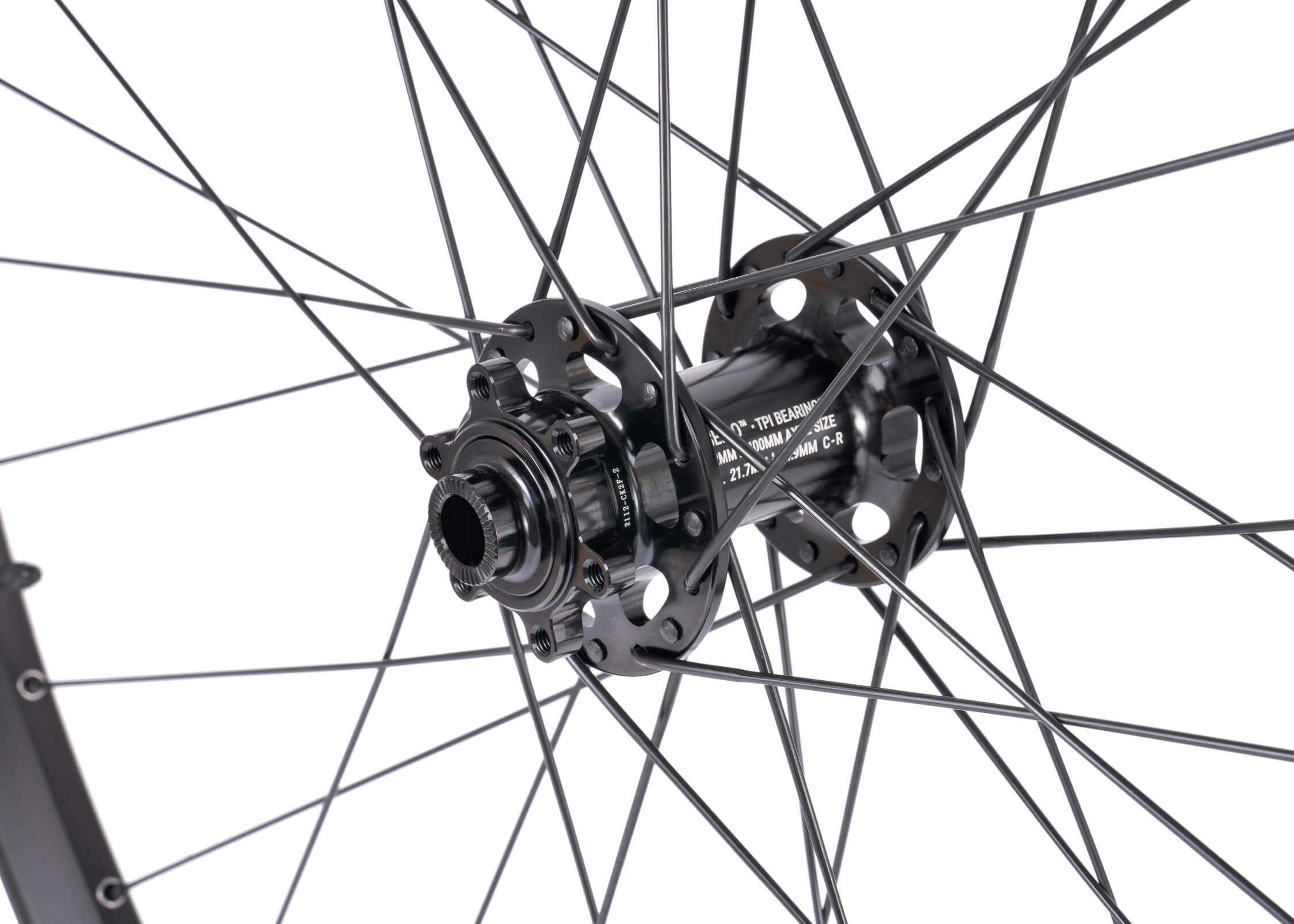

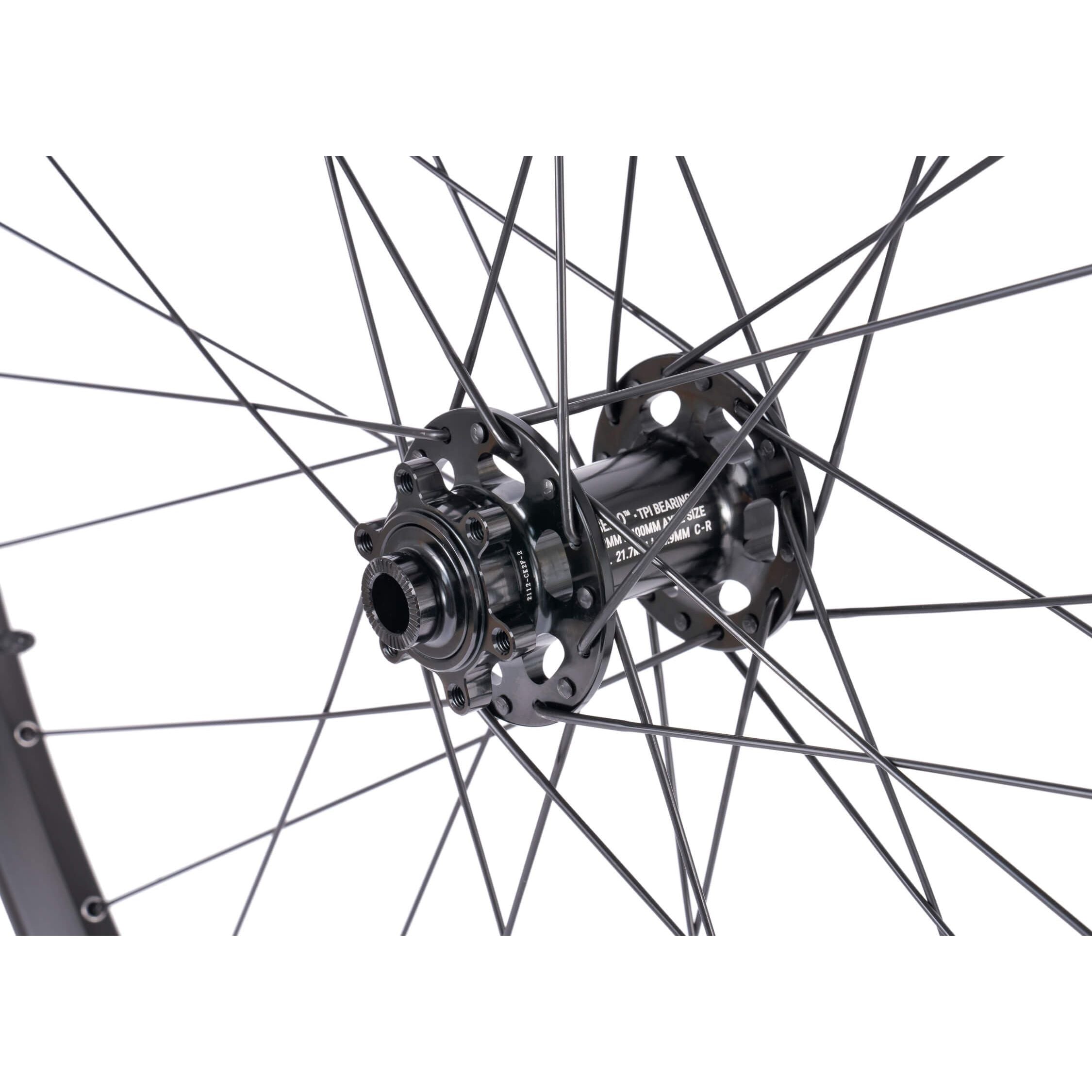

FRONT HUB
12 x 100 mm. TPI Bearings. 32H

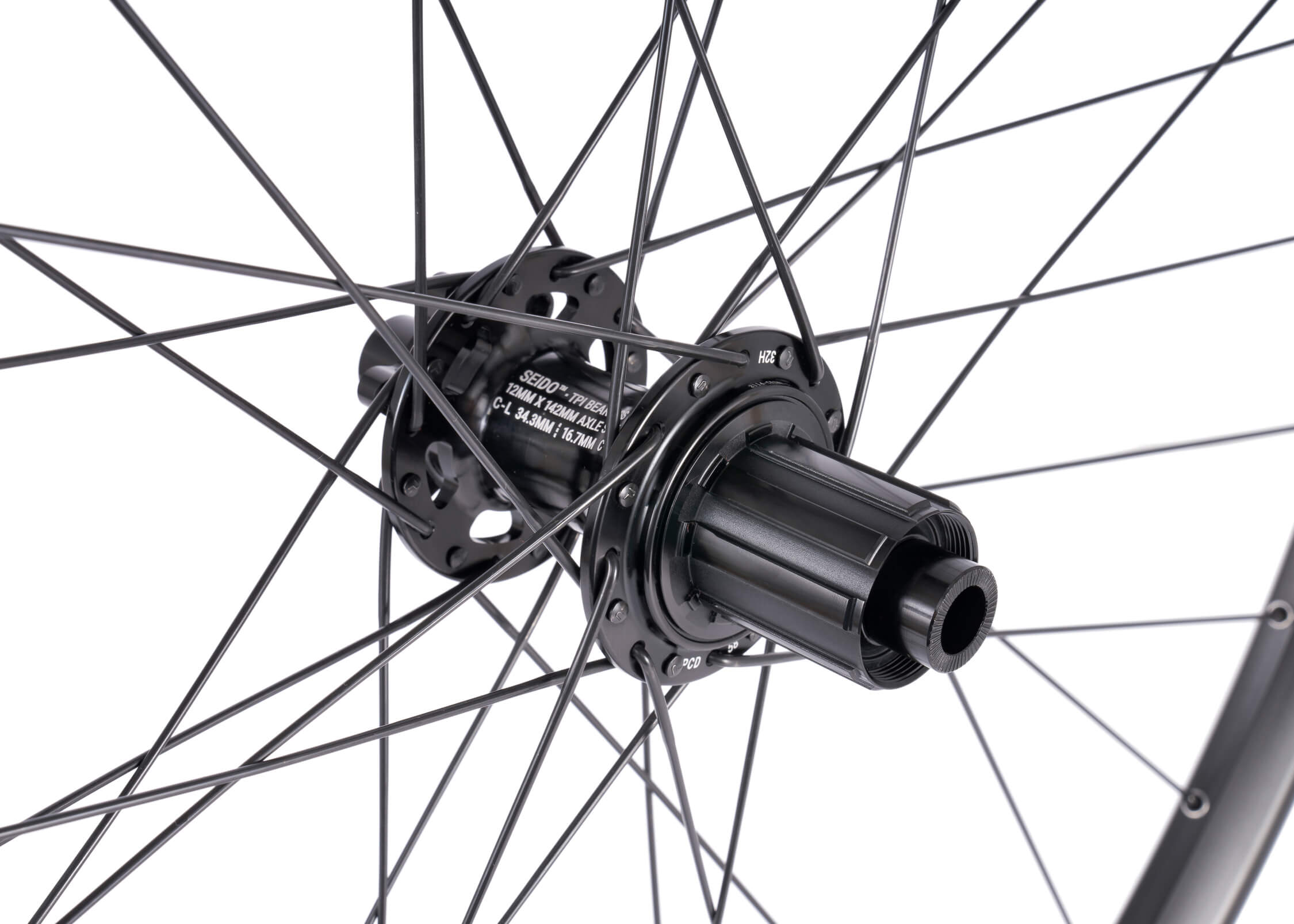

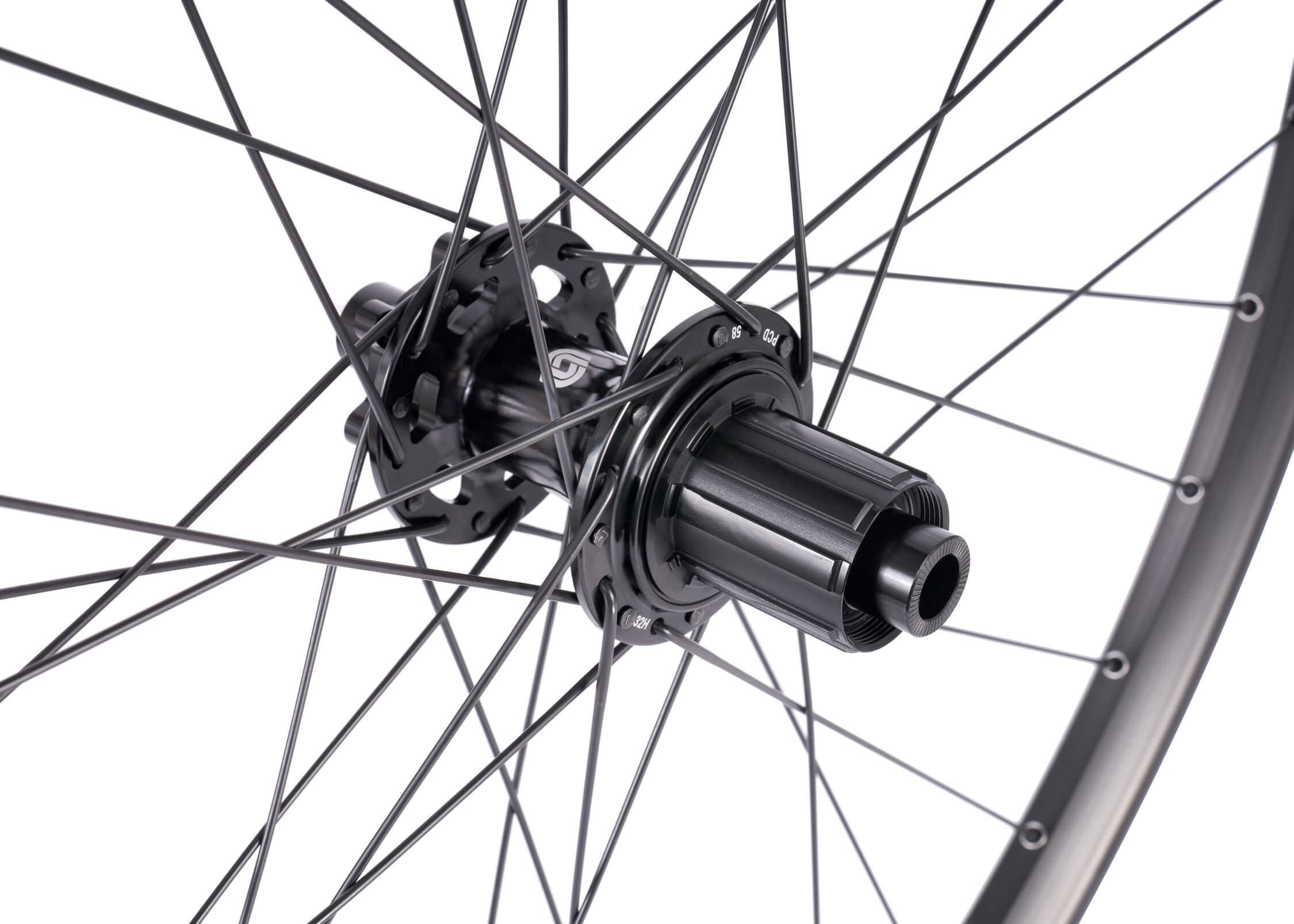

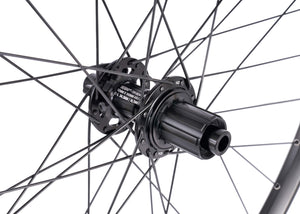

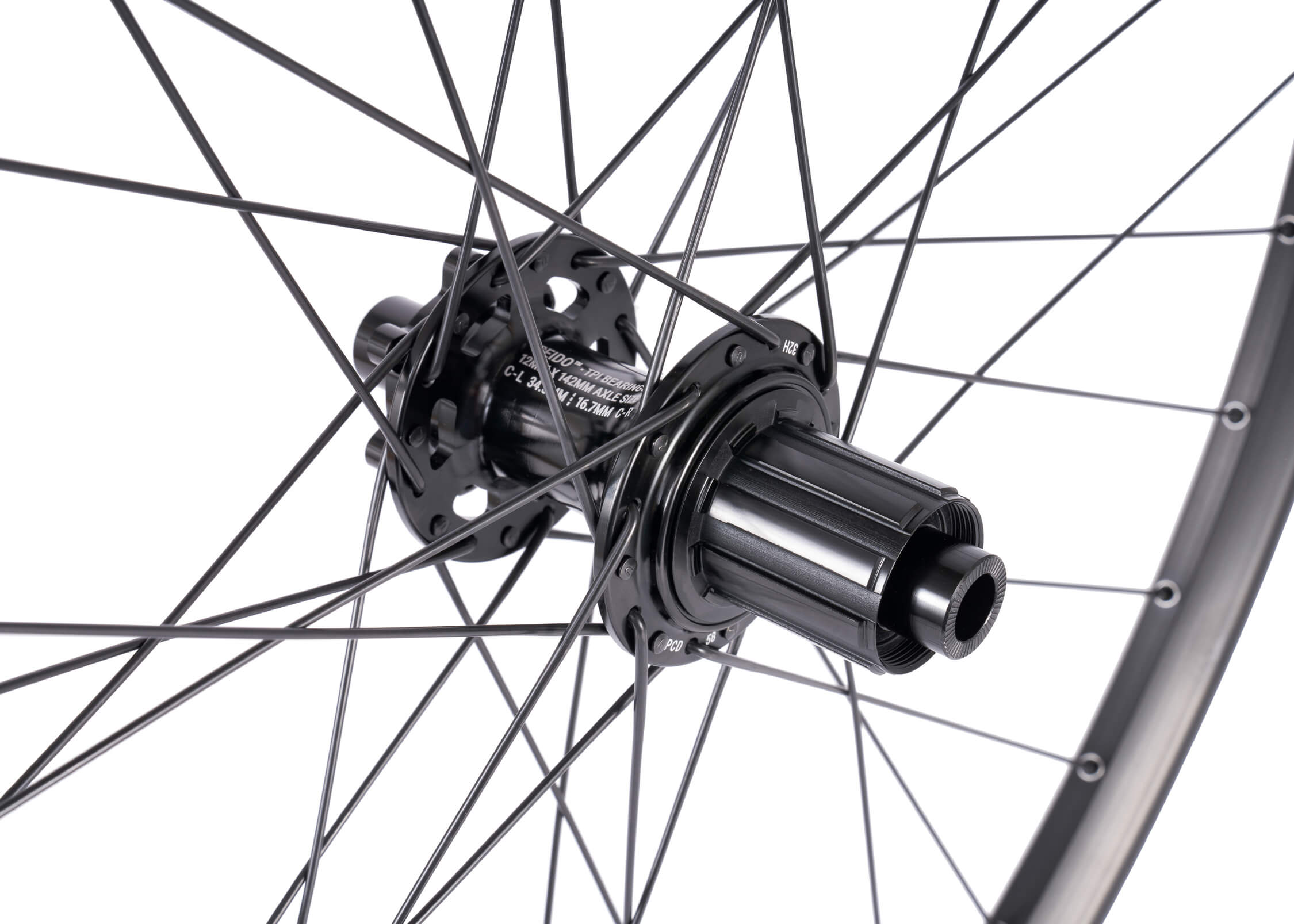

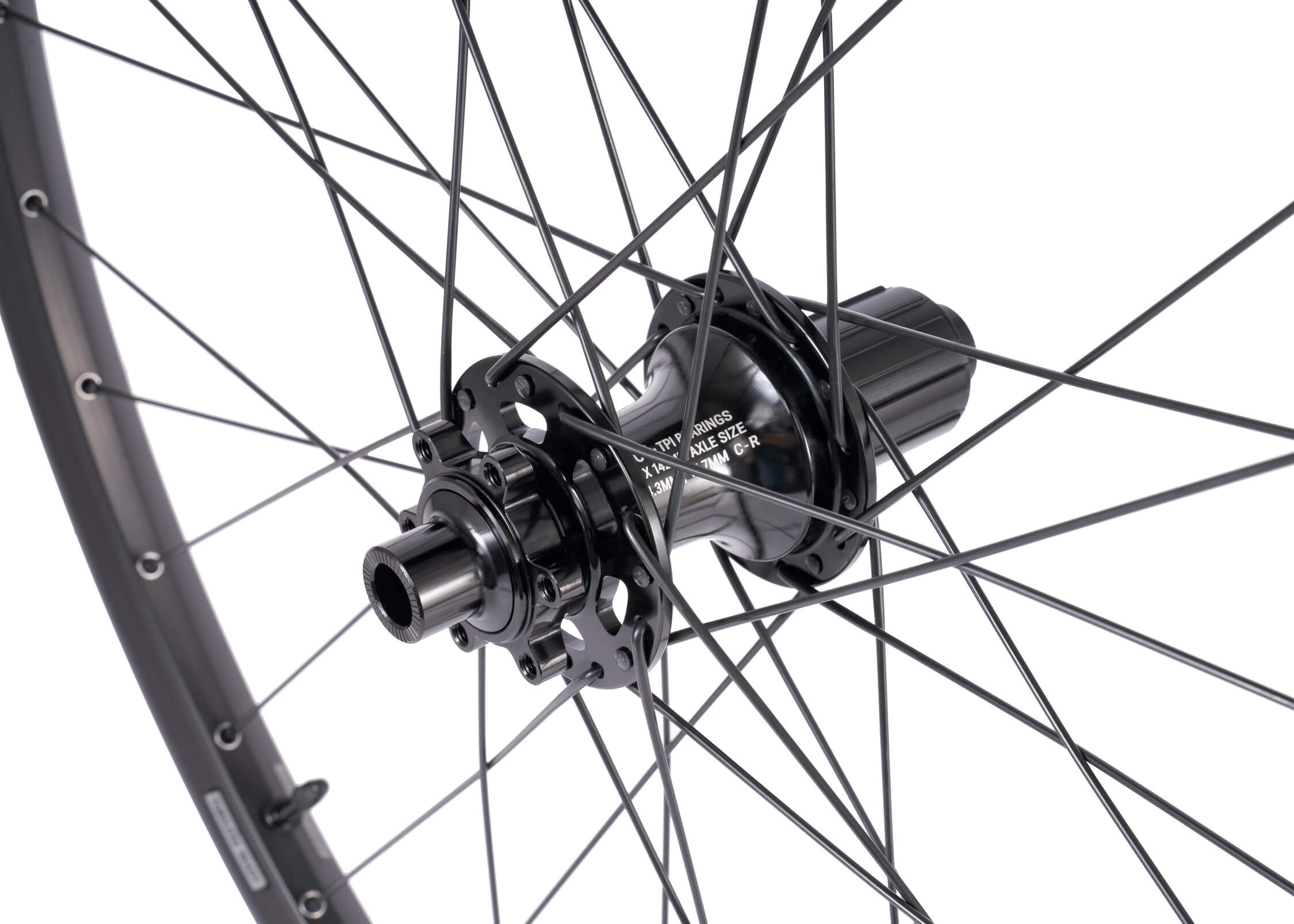

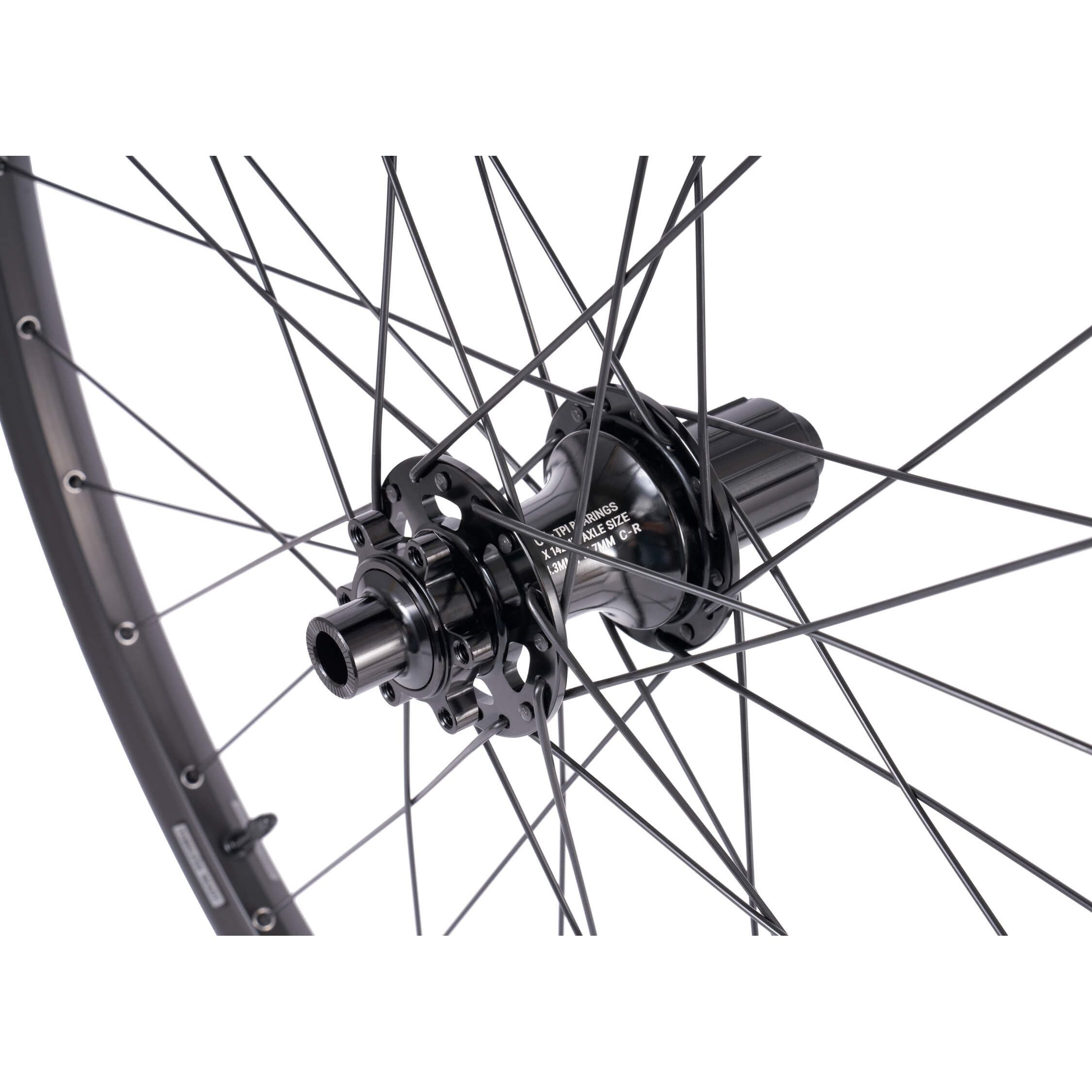

REAR HUB
12 x 142 mm. TPI bearings. 32H

SPOKES
Pillar PTB380. 3x lacing F/R

NIPPLES
Pillar DSN 14G

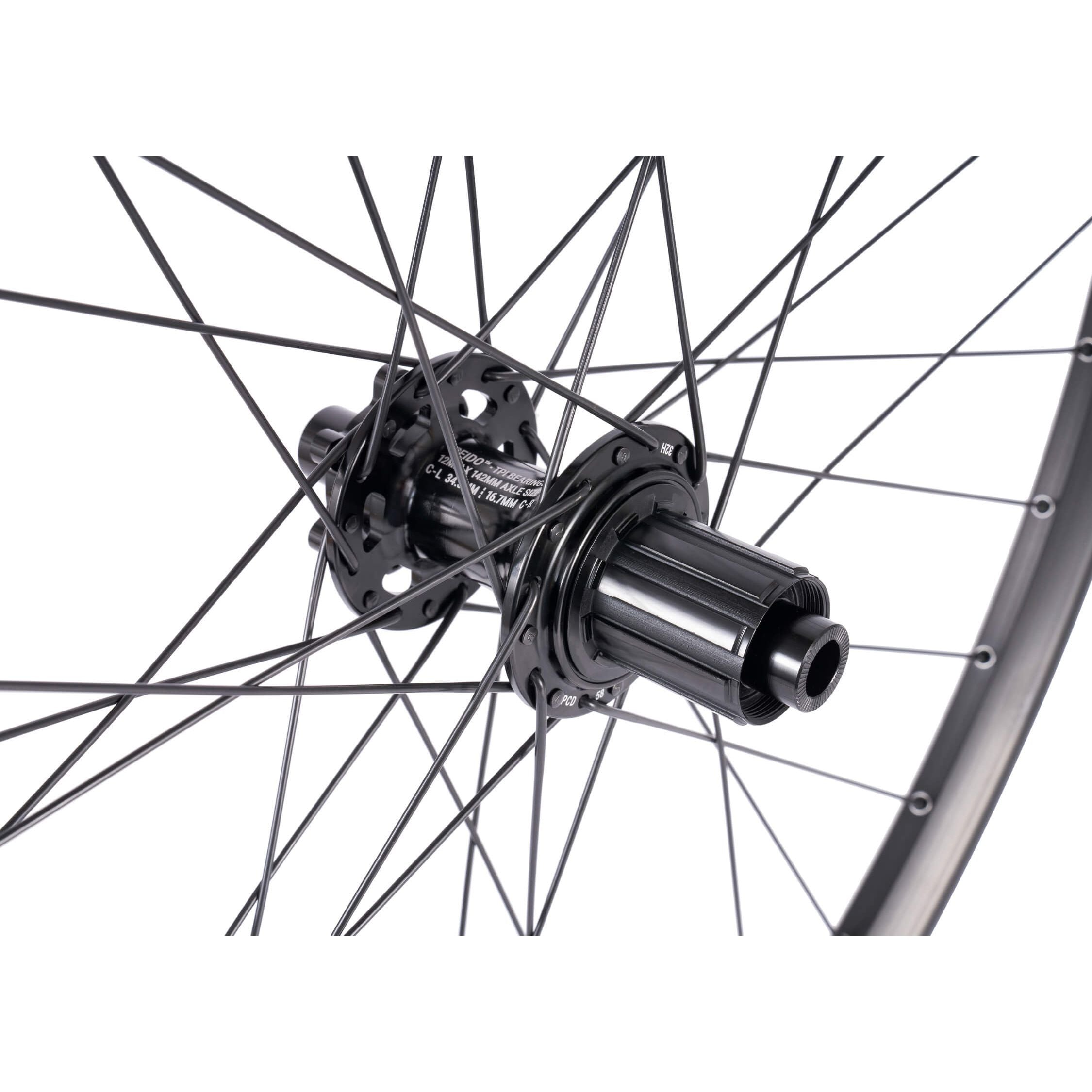

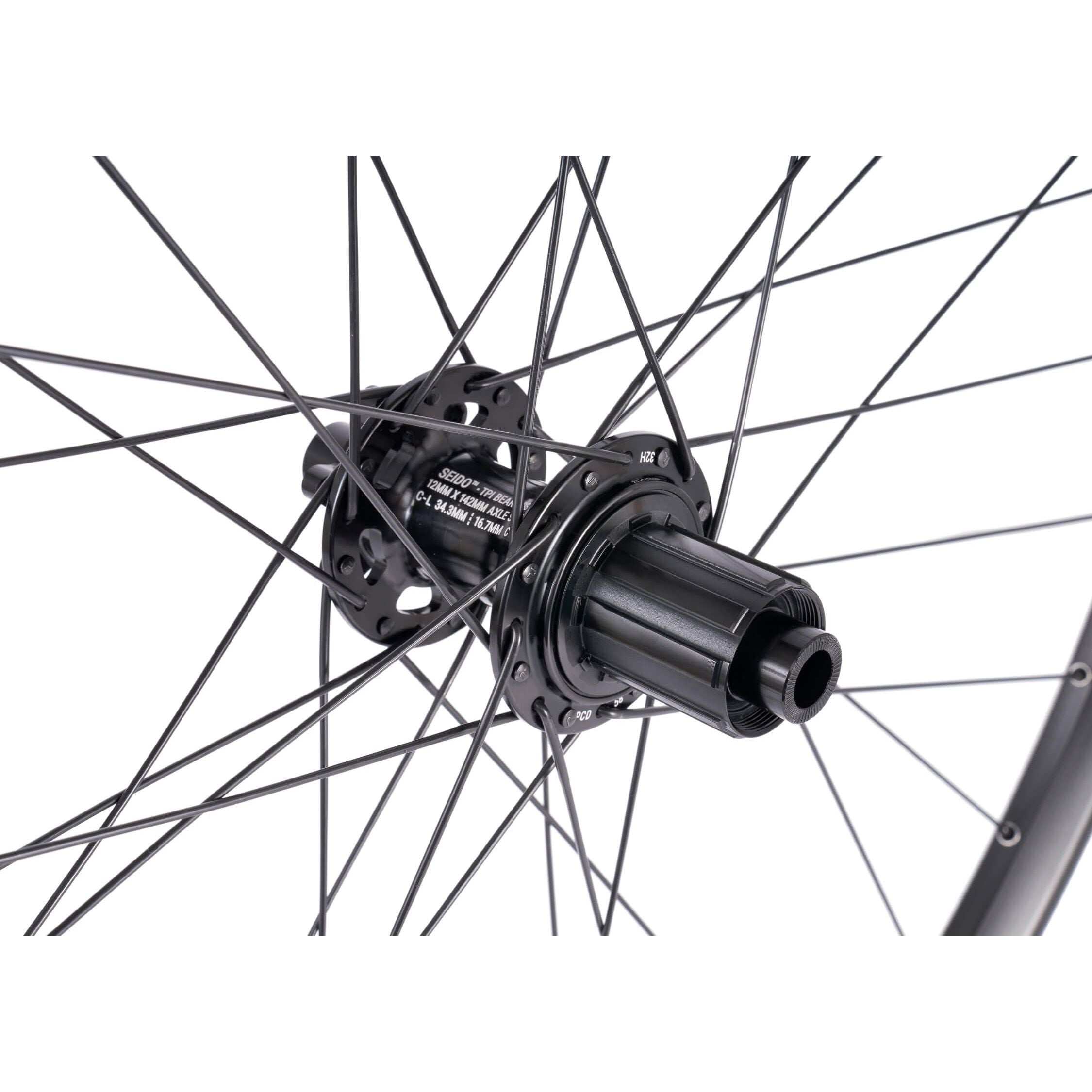

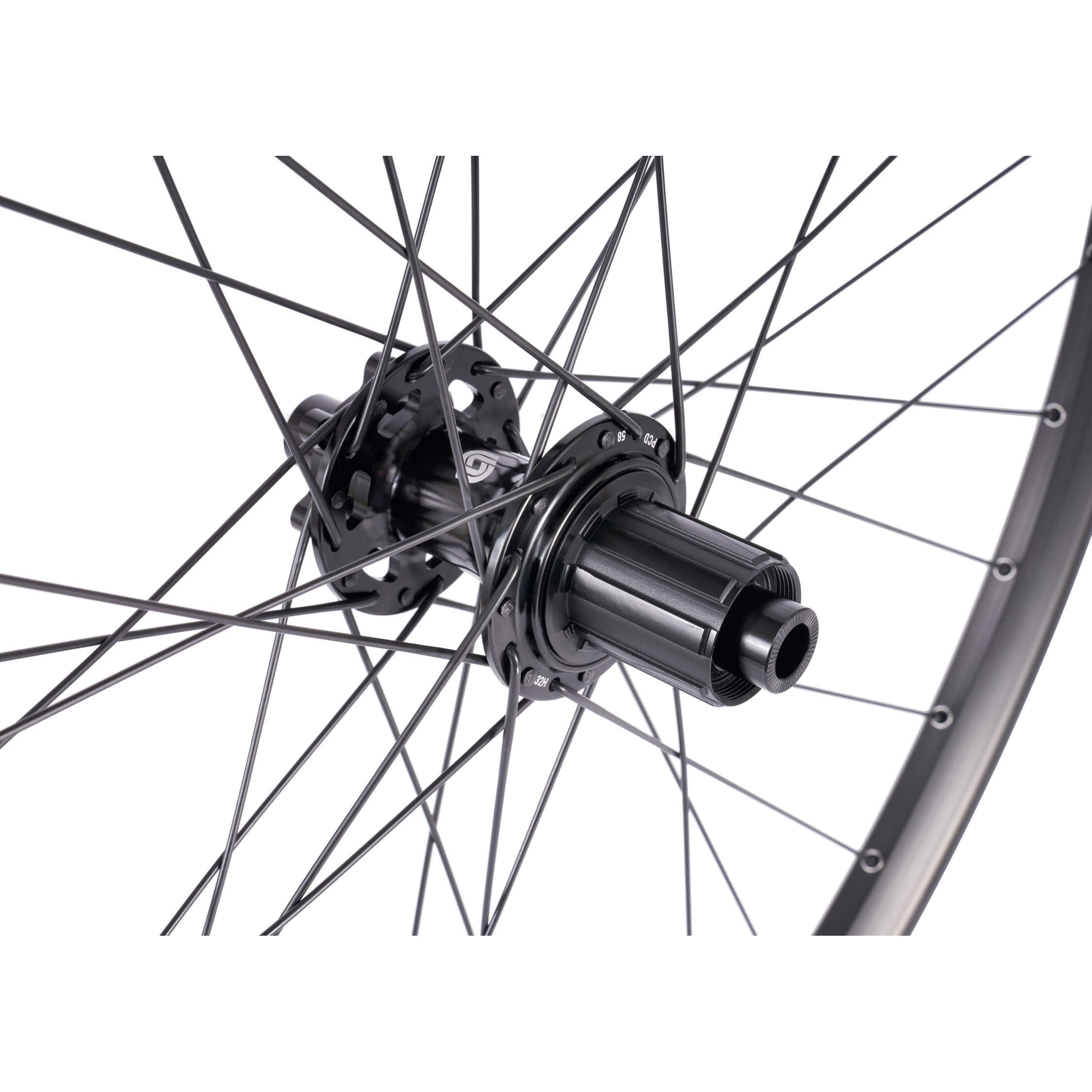

FREEHUB BODY
HG
XDR. Microspline separately available
Add to shopping cart with wheelset for 50% upgrade discount.

BRAKE TYPE
disc only

EXTRA INFO
Heavy duty touring wheelset for heavy riders or luggage. Max. load 150 kg. All parts specifically designed to withstand high loads.

INCLUDED

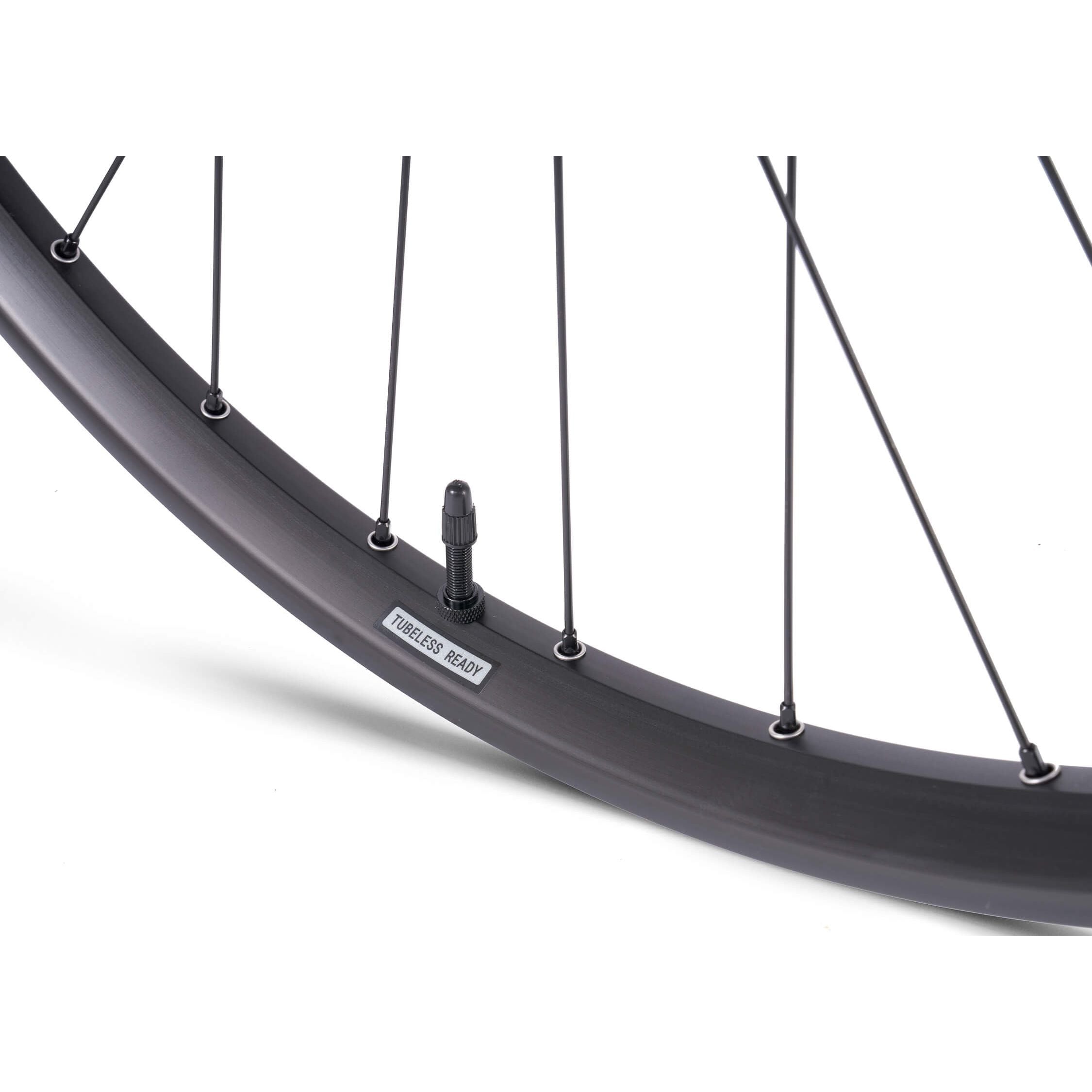

Pre-installed tubeless tape. aluminum tubeless valves

WEIGHT
650B: 1965 g (HG. 12mm TA. w/ tubeless tape)
700C: 2059 g (HG. 12mm TA. w/ tubeless tape)
